Build your own plug and cap kit
JIC, NPT and flange now, DIN and JIS coming soon. Pick the fitting, pick the color, set how many of each size. One add to cart for the whole drawer.

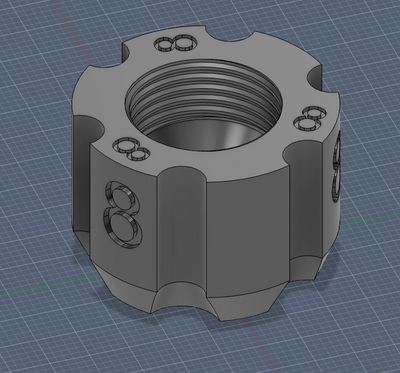

The American standard. 37 degree flare with an inch thread, dash sizes -4 through -32. On nearly every US-built truck, tractor and implement.
Pipe thread, no flare. Air lines, manifolds, gauge ports, tank fittings. Sized by nominal pipe size from 1/8 to 2 inch. Dust and shipping protection, not for pressure.
Blocking slugs that drop into a code 61 or 62 split flange with the O-ring so you can cap a pump or valve port while the hose is off. Sold as a full set, two of every size from -8 to -32. The CAT set is thicker for CAT flanges. SnapFlange is the other half: a snap-on guard that protects the flange face and O-ring on the hose end while it is off the machine, sold as a full kit with or without magnets.

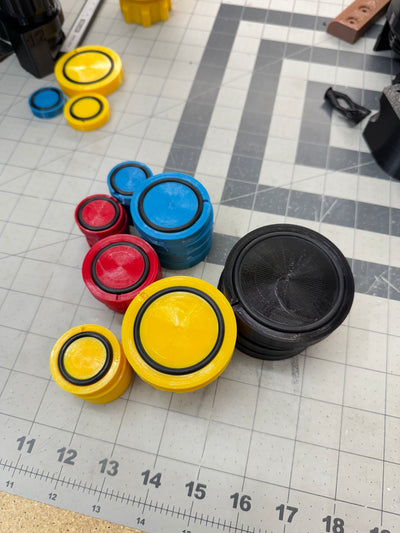

Flange slug set
Flange Slugs, Orings Included

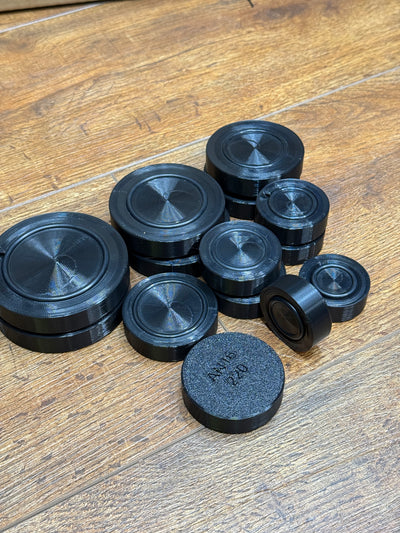

CAT flange slug set
CAT Flange Slugs, O-rings Included
SnapFlange hose saver kit
SnapFlange™ Hose Saver Flange Protection, Full KitEuropean iron: Fendt, Claas, Deutz, Liebherr, Krone, and most hydraulic cylinders. Light series (L) and heavy series (S) with the metric thread in the size name so you can match the fitting.
DIN light and heavy series are on the print list now. Need a size before it is listed? Send the metric thread through the custom form and we will print it for you.
Ask for DIN nowJapanese equipment: Komatsu, Kubota, Hitachi, Takeuchi, Yanmar. Looks like JIC but the flare is 30 degrees and the thread is BSP, so JIC parts will not seal. Sized by BSP thread.
JIS sizes are on the print list now. Need one before it is listed? Send the BSP thread size through the custom form and we will print it for you.
Ask for JIS nowCaps and plugs
Every cap and plug is printed to order in PETG. They are for keeping dirt, water and paint out of open ports and hose ends while a line is off, on the bench or in the parts bin. They are not pressure plugs. Colors let a shop code by size, by machine or by tech. Need a standard we do not list, ORFS, BSPP, SAE O-ring boss or a metric flange? Use the custom request form and we will draw it up.
